ISM300F2-C5-V0004
SiRFstarIII™ 20-channel GPS SMD compact module/receiver with enhanced high altitude power saving modes.
The ISM300F2-C5-V0004 module is programmed with HIGH ALTITUDE BUILD, ceiling 135,000 feet, and works at cold temperatures for balloon applications.
Specifications
- SiRF Binary at 57600 baud on port A
- NMEA at 4800 baud on port B
- Maximum altitude of 42000 meters (137795 ft)
- 18mm X 18mm x 3mm
- Surface Mount Component.
More information to come. Used on Ava flight computer. Project Ava
External link : ISM300F2-C5-V0004
Eagle Schematics for Breakout Board / device for ISM300F2
Eagle Schematics for Breakout Board / device for ISM300F2 :
WARNING READ BELOW → ism300breakout.zip ← WARNING READ BELOW

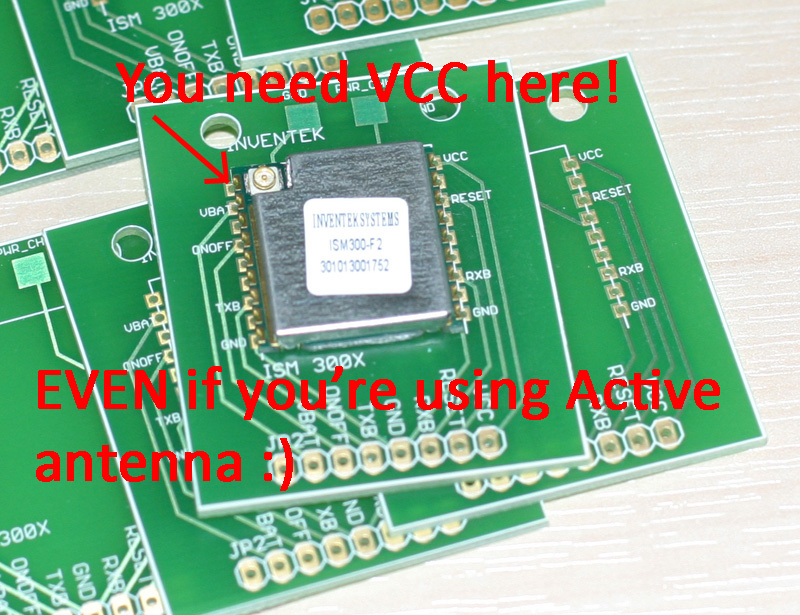

The breakout board has a fault:
You need to supply VCC to the antenna pin even if you are using an active antenna.
This is missing from the breakout you just need to either correct it on the PCB or run a quick wire from JP2 to the Antenna pin and connect that as per Inventeks datasheet.
Subtle image here :
